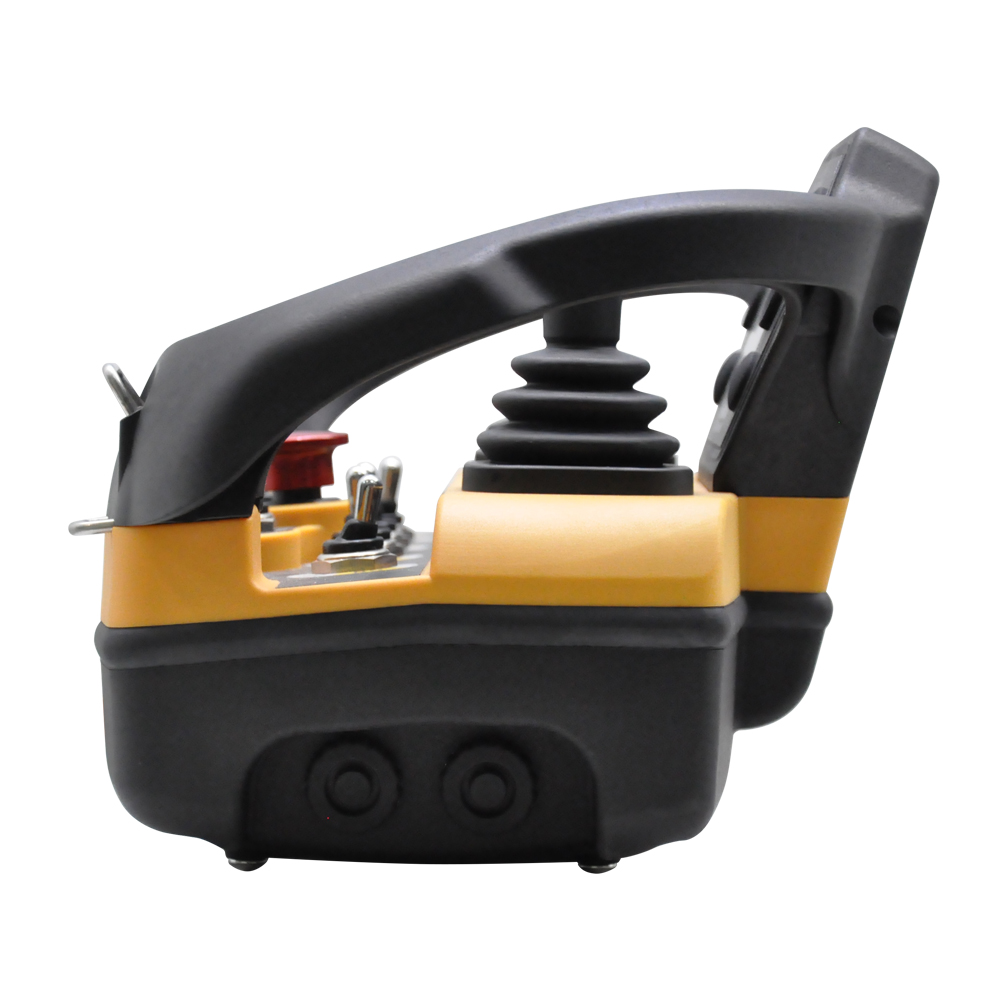

HBT-G-MAGIC

Intelligent, efficient, powerful,and excellent scalability performance


HBT Series can be equipped with 1-6 operating levers or 2-3 operating handles (continuously variable in the X/Y or Z axis direction).

HBT Series is equipped with an emergency stop switch, which can immediately stop all movements and functions of the lifting machinery. The emergency stop function complies with EN13849: 2008cat.3, PL=e standard.

HBT Series can be equipped with multiple toggle switches, buttons, gear switches, and potentiometers to operate and control various functions; For example, the start/stop, acceleration and deceleration of the engine, sound signals, and flow and speed control of the hydraulic system. Adopting high-quality operating levers and toggle switches, it has a good operating feel.

The operating speed of lifting machinery is positively proportional to the displacement angle of the operating rod.

Built in wireless omnidirectional smart antenna. LED lights and sound signals indicate operating status and battery level. Assist in checking and troubleshooting minor errors and fault displays in the system. Micro operation is a standard design. For example, reduce the speed in five gears, which are 60%, 50%, 40%, 30%, and 20% of the normal speed. The use of rechargeable lithium batteries that can be quickly replaced facilitates disassembly and improves work efficiency.

It can be equipped with LED lights or LCD display screens to indicate and display feedback values of lifting machinery.

This remote control, in conjunction with the receiver, can be adapted to various types of hydraulic valves on the market.

The fastened engineering plastic casing ensures that all functional components are protected from external mechanical damage.

The automatic frequency management function can provide reliable wireless signal transmission, and is designed with enhanced multiple  anti-interference capabilities, equipped with digital frequency hopping technology, effectively ensuring free operation without interference at (433MHz/868MHz). Other frequency bands can also be customized  according to the laws and regulations of different countries.


Strong performance and rich functionality

This transmitter can be equipped with 1-6 operating levers or 2-3 operating handles (continuously variable in the X/Y or Z axis direction).

This transmitter is equipped with an emergency stop switch, which can immediately stop all movements and functions of the lifting machinery. The emergency stop function complies with EN13849: 2008cat.3, PL=e standard.

This transmitter can be equipped with multiple toggle switches,buttons, gear switches, and potentiometers to operate and control various functions; For example, the start/stop, acceleration and deceleration of the engine, sound signals, and flow and speed control of the hydraulic system.

Adopting high-quality operating levers and toggle switches, it has a good operating feel.

The operating speed of lifting machinery is positively proportional to the displacement angle of the operating rod.

It can be equipped with 5 LED lights and a 2.8 inch LCD color display screen to indicate and display the feedback value of the lifting machinery.

This remote control, in conjunction with the receiver, can be adapted to various types of hydraulic valves on the market.


Standard accessories:

→   Shoulder/neck strap


Optional accessories:

→   Belt

→   Shoulder strap

→   Hook

Technical Parameters
Real time performanceReal time control technology
Frequency controlPLLPhase-locked loop
Dedicated address code32bit >42billion
Control distance>100m
Low voltage alarmAudible and visual alarm (6.0~6.5VDC)
Malfunction alarmMultiple combinations of sound and light alarms
Power saving protectionAutomatic shutdown (can be set for 0-30 minutes)
Transmitter antennaBuilt in
Shell materialHigh strength engineering plastics
Transmission frequency430~432MHz, 433.05~434.79MHz/25k
Transmitting power≤10mW
Number of buttons6 (display screen)+6 (Side buttons/optional)+2 (Optional 1.5-inch OLED information display screen)
Selection switch6
Working power supply7.4VDC (Li-On rechargeable)
Working current≤200mA
Standby current≤50mA
Status displayMax LED*4+LED*5 (Display)
EMS methodPush-pull emergency stop button
Protection levelIP65
Size290 x 195 x 170mm
