GDL-A106

Awesome Holding with Only One Hand


The transmitter is ergonomically designed and perfectly fits your palm. With a 2.5-inch waist circumference and 2.5-cm body thickness, the anti-slip integrated silicone sheath is easy to operate with one hand.

The transmitter has 6 one-step buttons with excellent hand-feel, and the front symbol of the button can be customized or implemented with a standard pattern.

The transmitter has high adaptability and rich functions. The system is suitable for wireless remote control applications with simple functional requirements. The button configuration can be selected as instantaneous button, self-locking button or interlocking button. Each button can be assigned to any receiver output or to multiple outputs at once. Buttons have the function of switching, and each button has two functions.

The transmitter has 5 LED indicators for displaying the feedback information and can be programmed according to customers' requirements. Transmitter with automatic frequency management can work continuously without any interruption caused by radio interference from other wireless devices.

The transmitter communicates with the corresponding receiver by the protocol of Hamming Code, CRC check Code and the unique identification code. This ensures that other GDL transmitters or other products will not inadvertently start the machine. The transmitter can be configured to send data only when a button is pressed, or it can be configured to use a dedicated start/stop button to establish permanent wireless communication with the receiver for greater security.


Soft-touch button & Customized Panel

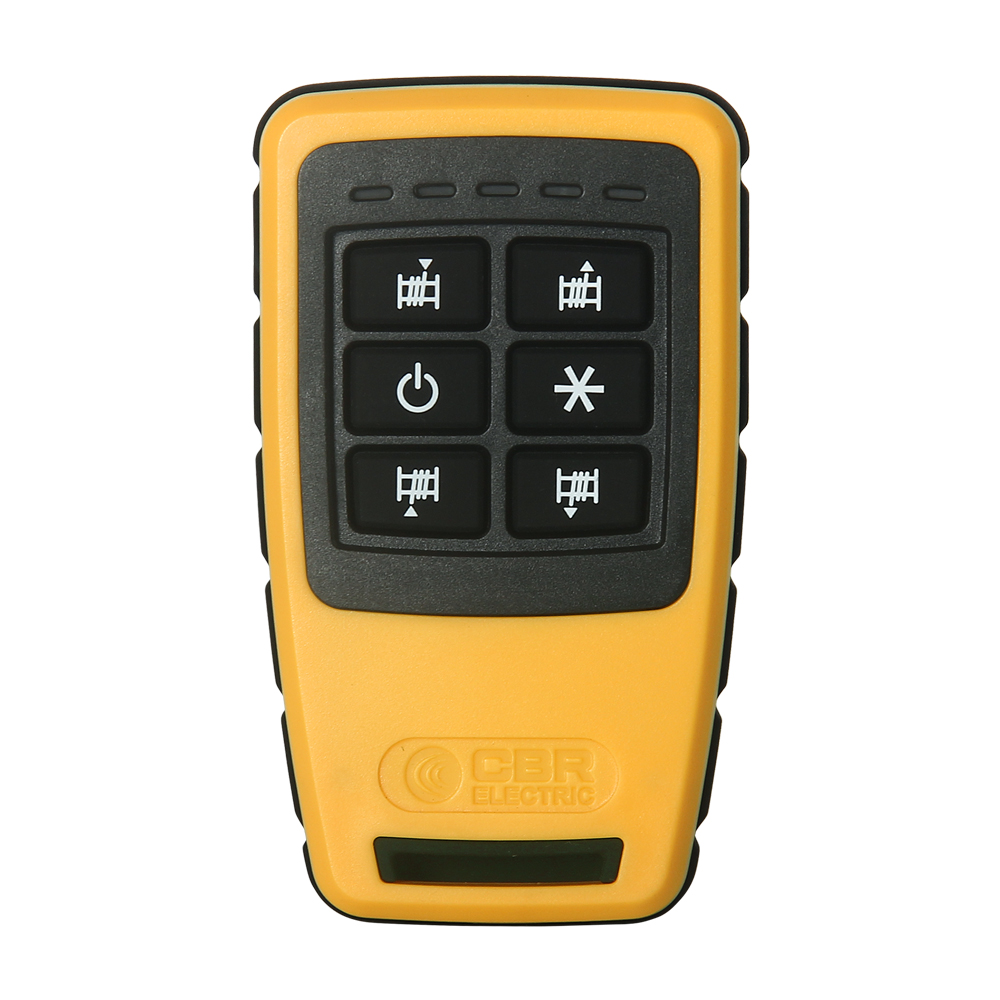

→  The transmitter has unique touch buttons and it is available in two models: a panel labeled 1-6 and a blank panel that allows you to customize the frame and key symbols. Blank panel usually comes with a frame label with a standard pattern.

Technical Parameters
Number of Buttons6 one-step buttons
Power Supply3 AAA, LR03, AM4 batteries
Temperature Range-25°C to 80°C
Output PowerMax.5mW
Frequency334-338MHz,400-475MHz

865-870MHz,902-928MHz

Working Distance~100m/~300ft
AntennaSmart antenna built-in
Display type5 LED indicator lights
Additional functionsSafe shutdown function, vibration alarm, one-to-many function, many-to-one function, many-to-many function, LED feedback, intelligent identification card, data encryption transmission, etc.
Protection GradeIP67
Size110*64*36 mm
